Glossary

Commonly Used Terms

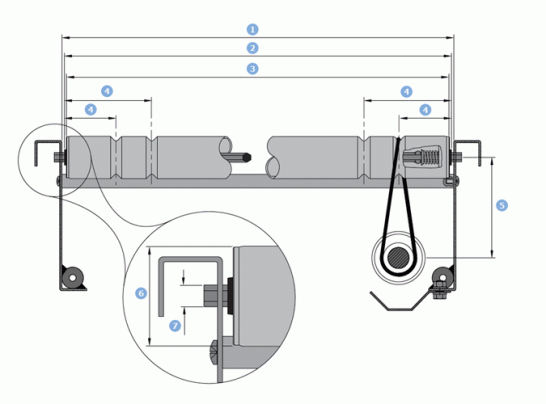

The following details the commonly used terms for rollers within a conveyor system.

glossary

Key
1 Inside Frame Width
2 Over Bearing Projection
3 Face Width
4 Groove Position
5 Lineshaft to Roller Centre
6 Tube Ø
7 Spindle Ø or A/F
