Tapered Conveyor Rollers

Overview

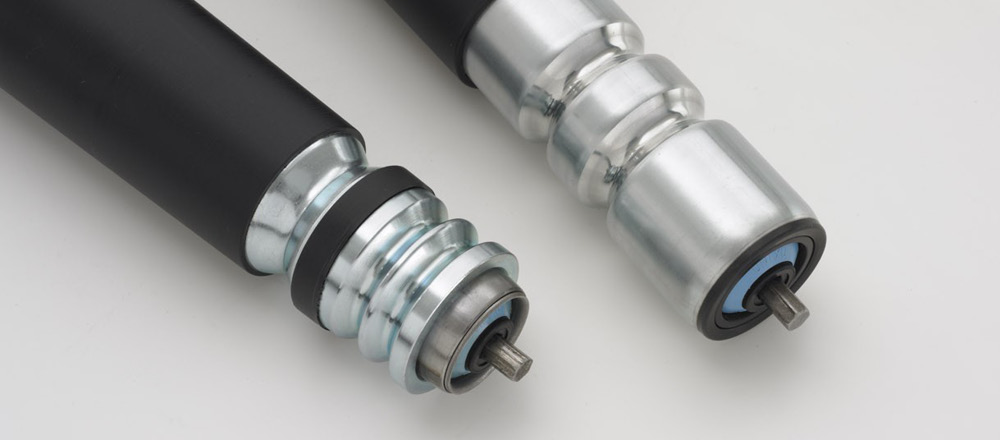

Tapered conveyor rollers are suitable for conveyor bends and have a black plastic tapered sleeving to ensure the correct product orientation on either Powered or Gravity Conveyors.

Specification

Tube Size Spindle Option Capacity*
 50mm x 1.5mm  ø10mm, ø12mm, ø14mm, ø15mm, 8mm & 11mm Hex  35kg
 1 1/2″ x 16 SWG  ø10mm, ø12mm, ø15mm, 8mm & 11mm Hex  35kg

*These maximum potential capacities are for guidance only and assume an evenly distributed static load.

Used on bends with an inside radius of 800mm to 1000mm.
Available with either 38mm or 50mm base rollers.

Finish: Roller tubes and spindles are supplied in self colour, bright zinc plated or stainless steel finish.

Spindle Conditions

Round

Round

Un-machined round spindles are suitable for double spring loaded rollers. In some cases the sideframes could be drilled as opposed to punched.

Hexagonal

Hexagonal

Extruded hexagonal spindles are suitable for punched conveyor sideframes. In most cases the spindle would be spring loaded. The hexagonal shape prevents the spindle from rotating in the side frame, it also prevents the bearing inner race from rotating on the spindle.

Drilled and Tapped

Drilled and Tapped

Both round and hexagonal spindles can be drilled and tapped at each end to enable the roller to be bolted between the conveyor sideframes, thus increasing the rigidity of the conveyor.

Milled Flats

Milled Flats

Round spindles with 2 milled flats are used in conveyors with slotted side frames where rollers are lowered into position. In most cases the spindle is supplied fixed within the roller.

Circlipped

Circlipped

External circlips can be used to captivate a spindle within a roller. This method of retention is usually found on heavy duty rollers and drums.

Threaded

Threaded

Round spindles can be threaded at either end to suit a metric or imperial nut. In most cases the spindle is supplied loose.

Drilled Spindle End

Drilled Spindle End

'Cross drilled' spindles are supplied loose and allow several rollers to be wired together in a sideframe to prevent spindle rotation and to retain the roller.
