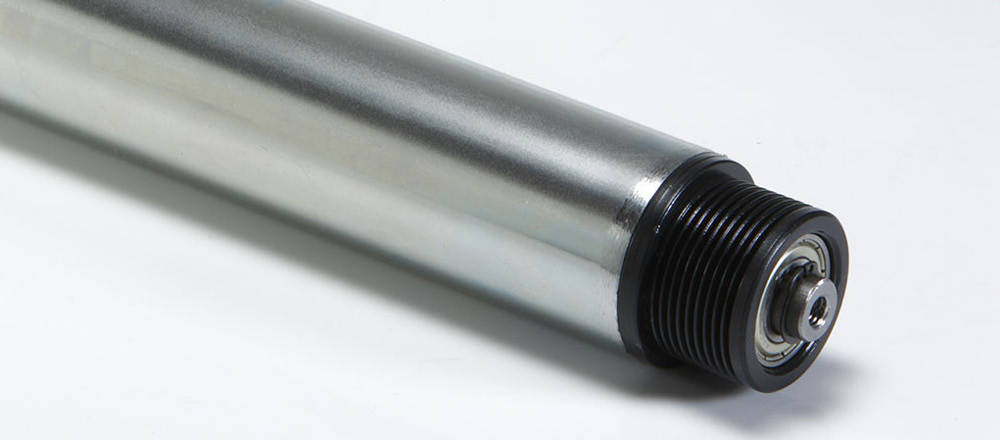

Poly V Conveyor Rollers

Overview

Poly V belt driven conveyor rollers are quiet in operation and offer the possibility of both Transportation and Zero Line Pressure accumulation (with the use of integral photocells).  Used in conveyors with decentralised drives this type of conveyor roller can provide a highly modular solution creating the possibility to add/remove zones from conveyor schemes with ease.

Specification

Tube Size Spindle Option Static Capacity*
 50mm x 1.5mm  ø8mm, ø10mm, ø7/16″, ø12mm, ø15mm & 11mm Hex  50kg
 50mm x 2mm ø8mm, ø10mm, ø7/16″, ø12mm, ø15mm & 11mm  50kg
 60mm x 2mm  ø10mm, ø12mm & 11mm Hex  50kg

* PLEASE NOTE THAT STATIC CAPACITIES ARE QUOTED, DYNAMIC CAPACITIES WILL BE GREATLY REDUCED DUE TO THE NATURE OF THE DRIVE METHOD.  DRIVING CAPACITIES WILL DEPEND UPON FACTORS SUCH AS BELT SPECIFICATION, MATERIAL AND TENSION AND AMBIENT CONDITIONS.

Note: Available as captive spindles only.

60mm can only be supplied drilled and tapped.

Spindle Conditions

Round

Round

Un-machined round spindles are suitable for double spring loaded rollers. In some cases the sideframes could be drilled as opposed to punched.

Hexagonal

Hexagonal

Extruded hexagonal spindles are suitable for punched conveyor sideframes. In most cases the spindle would be spring loaded. The hexagonal shape prevents the spindle from rotating in the side frame, it also prevents the bearing inner race from rotating on the spindle.

Drilled and Tapped

Drilled and Tapped

Both round and hexagonal spindles can be drilled and tapped at each end to enable the roller to be bolted between the conveyor sideframes, thus increasing the rigidity of the conveyor.

Milled Flats

Milled Flats

Round spindles with 2 milled flats are used in conveyors with slotted side frames where rollers are lowered into position. In most cases the spindle is supplied fixed within the roller.

Circlipped

Circlipped

External circlips can be used to captivate a spindle within a roller. This method of retention is usually found on heavy duty rollers and drums.

Threaded

Threaded

Round spindles can be threaded at either end to suit a metric or imperial nut. In most cases the spindle is supplied loose.

Drilled Spindle End

Drilled Spindle End

'Cross drilled' spindles are supplied loose and allow several rollers to be wired together in a sideframe to prevent spindle rotation and to retain the roller.
